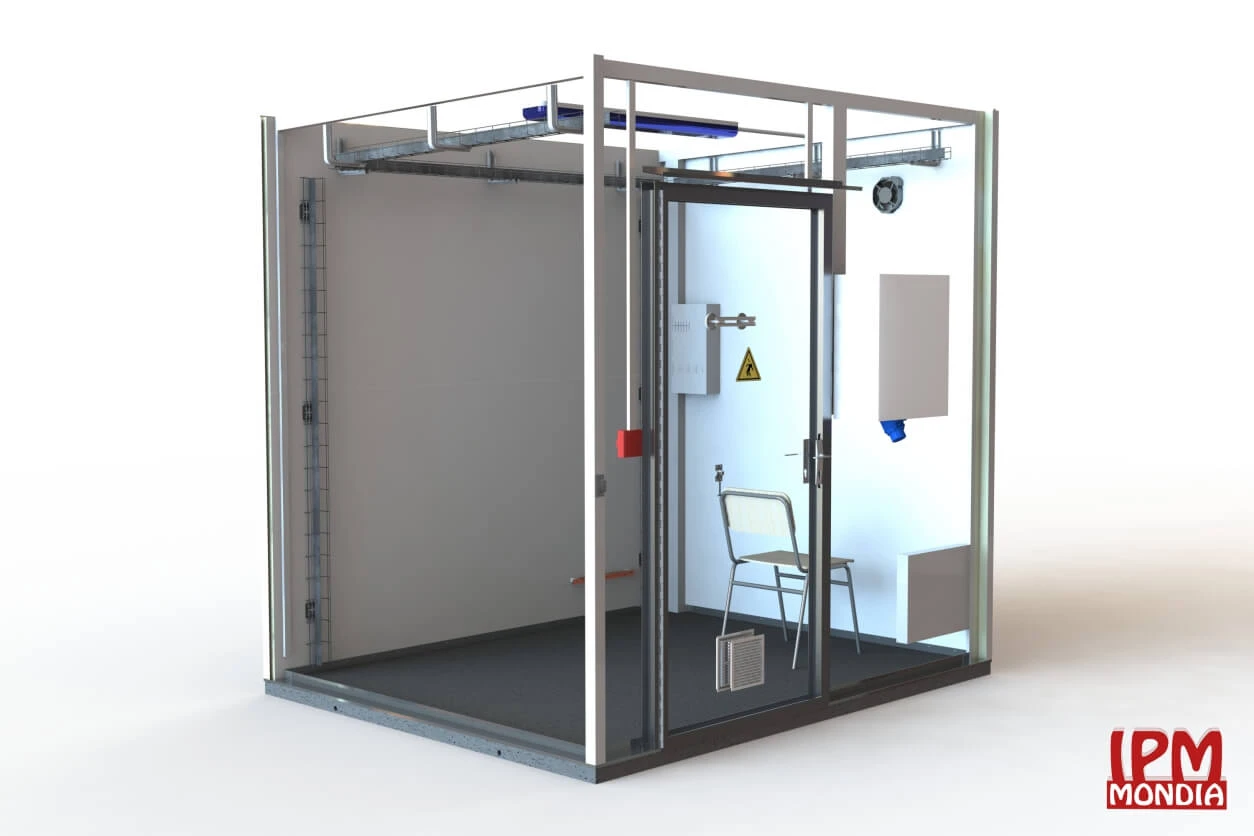

SHELTER RST
Technical shelters for telecom use in insulated sandwich panels with polyester facing, concrete slab base, lifting from below
Application areas
• Air analysis
• Industrial analysis
• Electronic equipment storage
• Road and rail network signaling
• Telecommunication
Principles of construction
• Lengths from 2 to 6 m
• Widths up to 3.00 m
• Heights up to 3.00 m
• Self-supporting reinforced concrete base
• Monolithic sandwich panels• 47 mm insulation which can be increased on request
• Coefficient U walls and roof of 0.556 W / m²K °
• Lifting from below on chassis with spacer
Benefits
• Very high resistance to environmental conditions thanks to monolithic panels
• Very high rigidity of monocoque structure allowing lifting under load
• Reduction of integration time by the ease of fixing in the panels
• Reduction of thermal bridges, reduction of interior condensation by its method of assembly by structural bonding
• Adaptation to your graphic charter with Pantone color chart by adhesive film or RAL color chart by paint
• Easy handling
• Factory integration of easements (electricity, heating, air conditioning, etc.)
• Reduction in dead weight through the use of modern materials
• Direct installation on compacted soil avoiding civil engineering
Concept adaptable to your operating constraints
• Dimensions
• Materials
• Location as an atex, corrosive area ...
