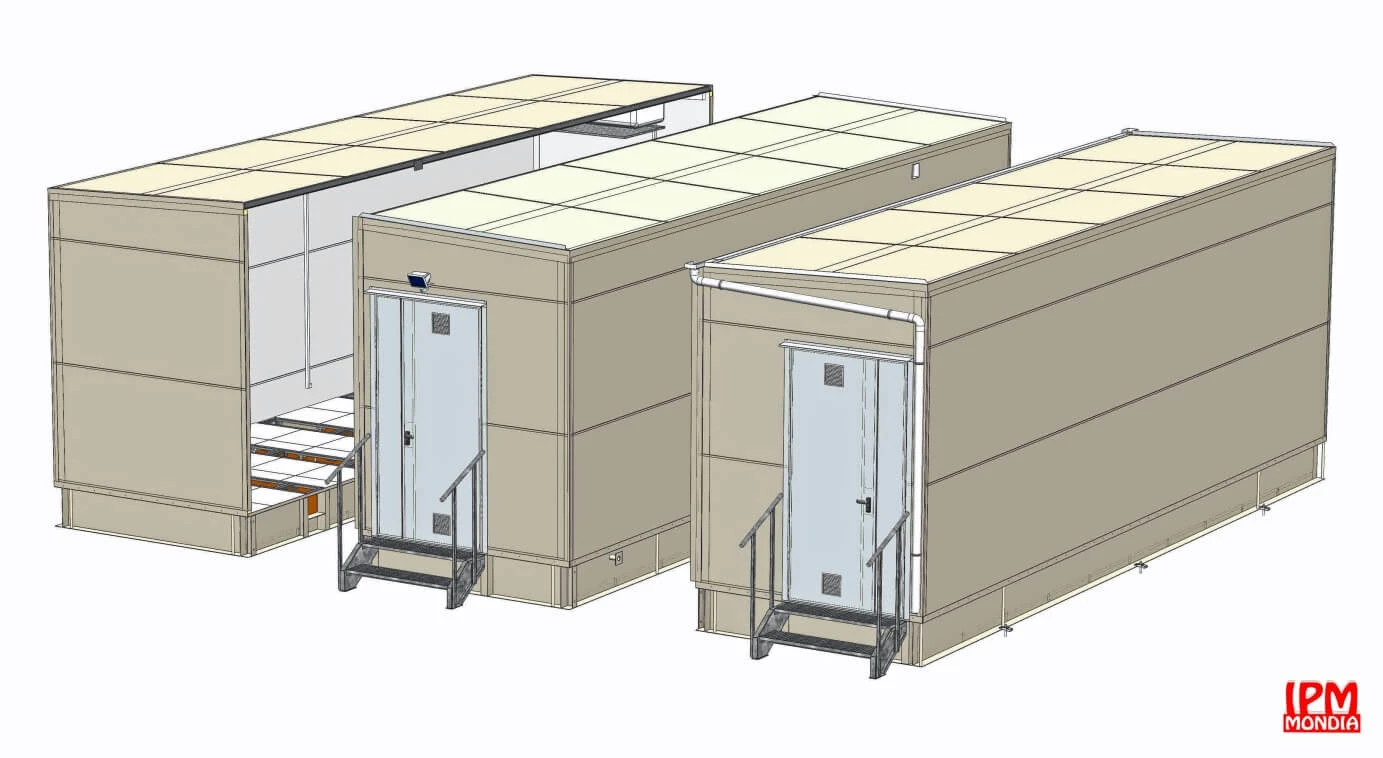

SHELTER JUXTAPOSED
Technical shelters for industrial use in insulated sandwich panels with polyester or aluminum facing, lifting from the top or bottom
Application areas
• Air analysis
• Industrial analysis
• Electronic equipment storage
• Road and rail network signaling
• Telecommunication
Principles of construction
• Length up to 14 m
• Width per module up to 4.80 m
• Heights up to 3.60 m
• Steel base, surface treatment by metallization
• Monolithic sandwich panels
• 62 mm insulation can be increased on request
• U coefficient of walls and roof of 0.556 W / m²K °
• Insulated floor load 500 kg / m² to 1200 kg / m²
• Lifting from the top or the bottom on frame with spreader
Benefits
• Very high resistance to environmental conditions thanks to monolithic panels
• Very high rigidity of monocoque structure allowing lifting under load
• Reduction of integration time by the ease of fixing in the panels
• Reduction of thermal bridges, reduction of interior condensation by its method of assembly by structural bonding
• Adaptation to your graphic charter with Pantone color chart by adhesive film or RAL color chart by paint
• Easy handling
• Factory integration of easements (electricity, heating, air conditioning, etc.)
• Reduction in dead weight through the use of modern materials
Concept adaptable to your operating constraints
• Dimensions
• Materials
• Location as an atex, corrosive area ...
