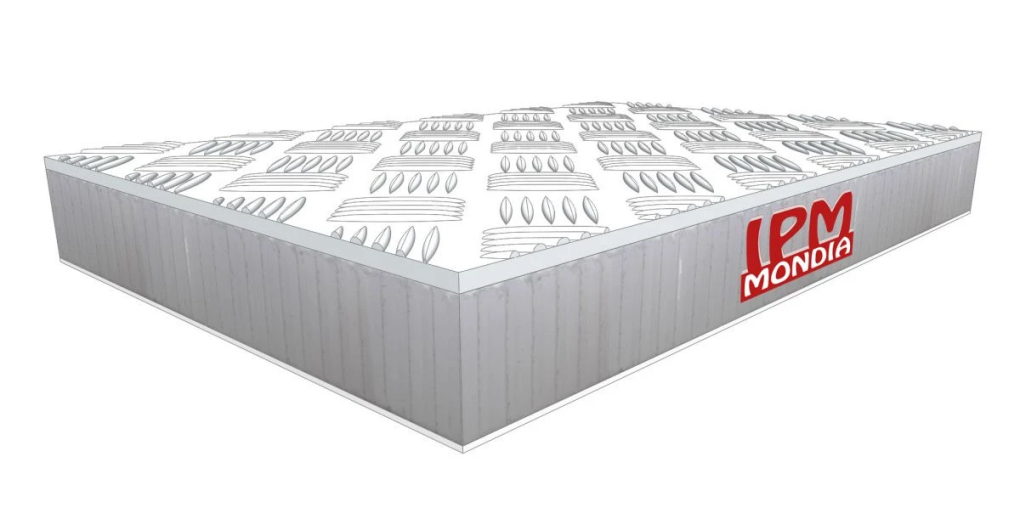

HONEYCOMB COMPOSITE FLOORING
Insulated structural sandwich panels
Choice of materials
Interior cladding
raw timber, chequered aluminium sheets, non-slip rolled polyester
Puncture reinforcement
1 layer of polypropylene or aluminium honeycomb, thickness depending on strength
Insulation
Options include extruded polystyrene, polyurethane or rock wool; thickness depends on thermal coefficient
External cladding
Polyester, aluminium or stainless steel
Areas of application
- Technical shelters, modular structures, cabins
- Industrial bodywork (ambulances, vans, shops, etc.)
- Rail
- Shipbuilding
- Insulation for industrial and food processing machinery
- Building cladding (cleanrooms or grey rooms, laboratories)
- Military
Fixing and strength
- Method of fixing the panels together:
single-component polyurethane adhesive or two-component adhesive
- Mechanical resistance via riveting:
20 kg pull-out strength at 2 points
Possible applications:
- Steel, aluminium, timber, expanded PVC structures, etc.
- Pipe penetrations: steel, aluminium, PVC, IRO
- Localised reinforcements in sheet steel, aluminium or plywood strips
Manufacturing and machining limits
- Dimensions of monolithic panels: 14650 x 3200 mm
- Larger panels can be produced by joining
2 High-Speed Machining (HSM) centres
- CNC machining table: 9460 x 2950 mm
- Machining on digital table: 14650 x 3200 mm
